GANTRY RAPIDE 工程系统

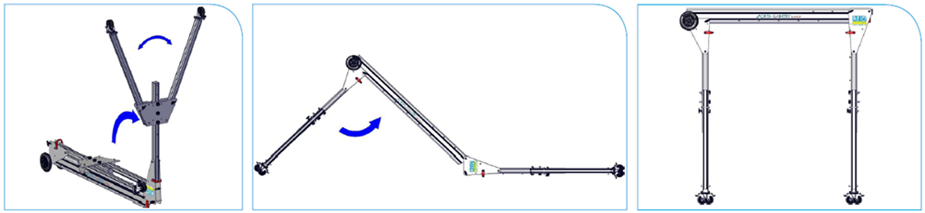

Innovative, lightweight, portable, a unique range of single piece, fold away gantry system and fast manual assembly: KEY FEATURES: - Dual rated, fall protection and goods and personnel lifting. - Goods/ personnel rated to 500kg - Certificate in conformity to the standard EN 795 Class B. - 3 person simultaneous fall arrest protection. - Unique rapid attach trolley options. - Adaptable, multi-purpose trolley systems to assist with confined space challenges and load movement. - Rapid assembly by one person in just a minute. - No bolts or tools required. - Total assembled weight from 33kg. - Integral wheeled carrier for easy of transportation: - Folds down neatly with structure acting as its chassis & transport wheel for portability by one person. - 2 handles also supplied & easily fits into typical service vans. - Highly compact for stowage & easily fits into typical service vans. - Winch options available – goods & personnel positioning (man-ride) - 360º rotation, swivel-locking Load Bearing castor wheels or Articulated Feet or adjustable height option. - Lockable castors for easy positioning. - Height of Lift easily adjusted by 200mm increments. - Optional storage box. - Custom beam lengths and configurations available Standard system configurations: • Standard - Height of lifting eye 1738mm to 1938mm • Medium - Height of lifting eye 1642mm to 2042mm • Tall - Height of lifting eye 1916mm to 2816mm Standard beam options – 2000, 2300 and 4000mm & custom 200mm (500kg); 2300mm (400kg); to 4000mm (250kg) * Fall arrest capability reduced when goods load simultaneously applied
